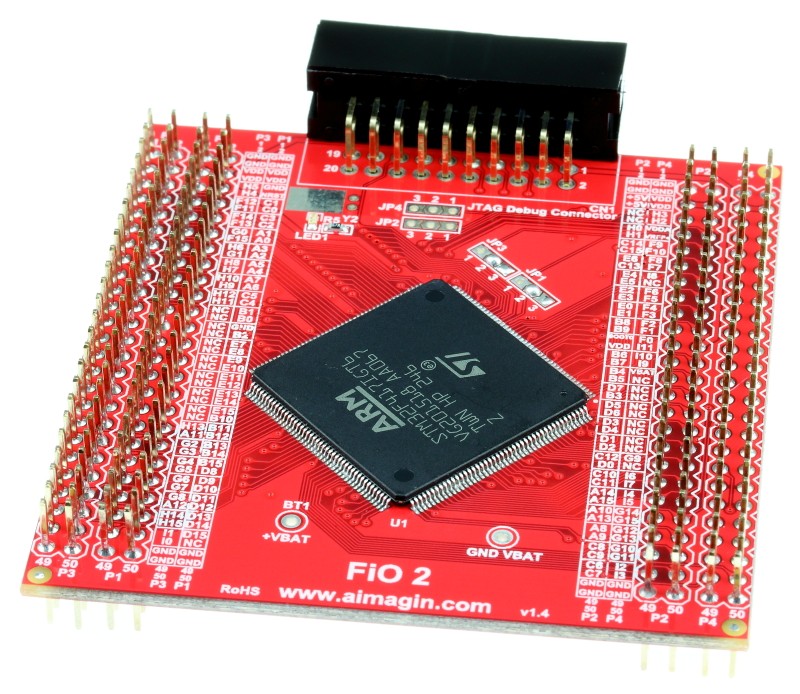

FiO 2

Product Code:fio-2

Availability: In stock

From: ฿1,250.00

To: ฿1,500.00

Price as configured: ฿0.00

Quick Overview

Based on ARM Cortex-M4 STM32F417IG MCU
All IO pins available via pin headers upto 140 pins
Pin compatible with STM32F4DISCOVERY board
Onboard 8MHz crystal (for HSE clock)
JTAG Debugger port
Require ST-Link to program and debug
Optional External SDRAM (up to 512 kBytes)
Optional Onboard 32.768kHz crystal (for real time clock) with button (2032) battery holder

**IMPORTANT NOTE** : FiO 2 requires ST Link to program the MCU.
