aMG Labkit F4S

Product Code:amglabkitf4s

Availability: Out of stock

฿6,360.00

Price as configured: ฿6,360.00

Quick Overview

Functionally the same as FiO Std with superior specifications:

Faster speed: 168MHz with Hardware Floating Point (For better DSP and computation intensive applications)

Faster real-time Hardware in the Loop test: 1kHz Closed Loop, 2kHz Open Loop

More memory: 1MB Flash, 192kB RAM (Expandable to 192 + 512kB RAM with FiO 2)

More IO: upto 140 GPIO pins (with FiO 2)

More periphals: Camera, Ethernet, ...

More new powerful hardware.

1x STM32F4DISCOVERY Board (STM32F407VG, 168MHz) or FiO2 (STM32F417IG)

1x aMG F4 Connect 2 (Motherboard with expansion slots)

1x aMG USB Converter - N2 (2-Channels USB-Serial/SPI/I2C Converter enable upto 2kHz HIL Test per channel)

Nylon Spacer Basic Set (4x6m-I/I, 4x10mm-I/E)

ST Link V2 (FiO 2 requires ST Link to program the MCU.) (Optional)

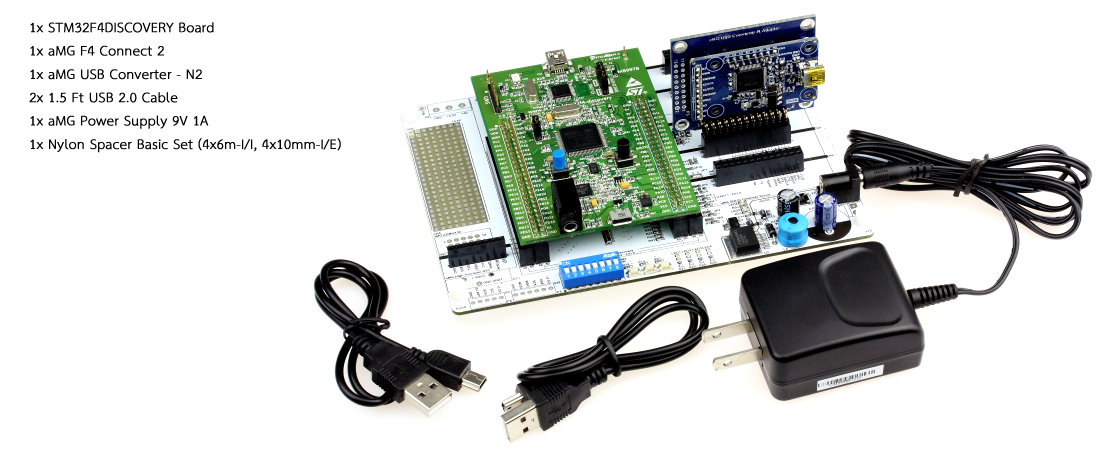

aMG Lab Kit F4S Discovery
